Getting Started

Juno is an ahead-of-time compiler for running a practical subset of Java on the Arduino UNO R4 WiFi and the Arduino UNO Q. It keeps javac as the Java frontend, performs closed-world linking on the development machine, and emits GNU ARM (Cortex-M4, Thumb-2) assembly straight from Juno's own IR, plus a small extern "C" C++ runtime shim (GPIO/Serial/LED matrix/ Wi-Fi/HTTP/JSON helpers, the arena allocator, long/float/double support) that the board's Arduino toolchain assembles and links alongside it into native code: the Renesas core for the UNO R4 WiFi's RA4M1 (Cortex-M4), and the Zephyr core for the UNO Q's STM32U585 microcontroller (Cortex-M33, which runs the same Thumb-2 code).

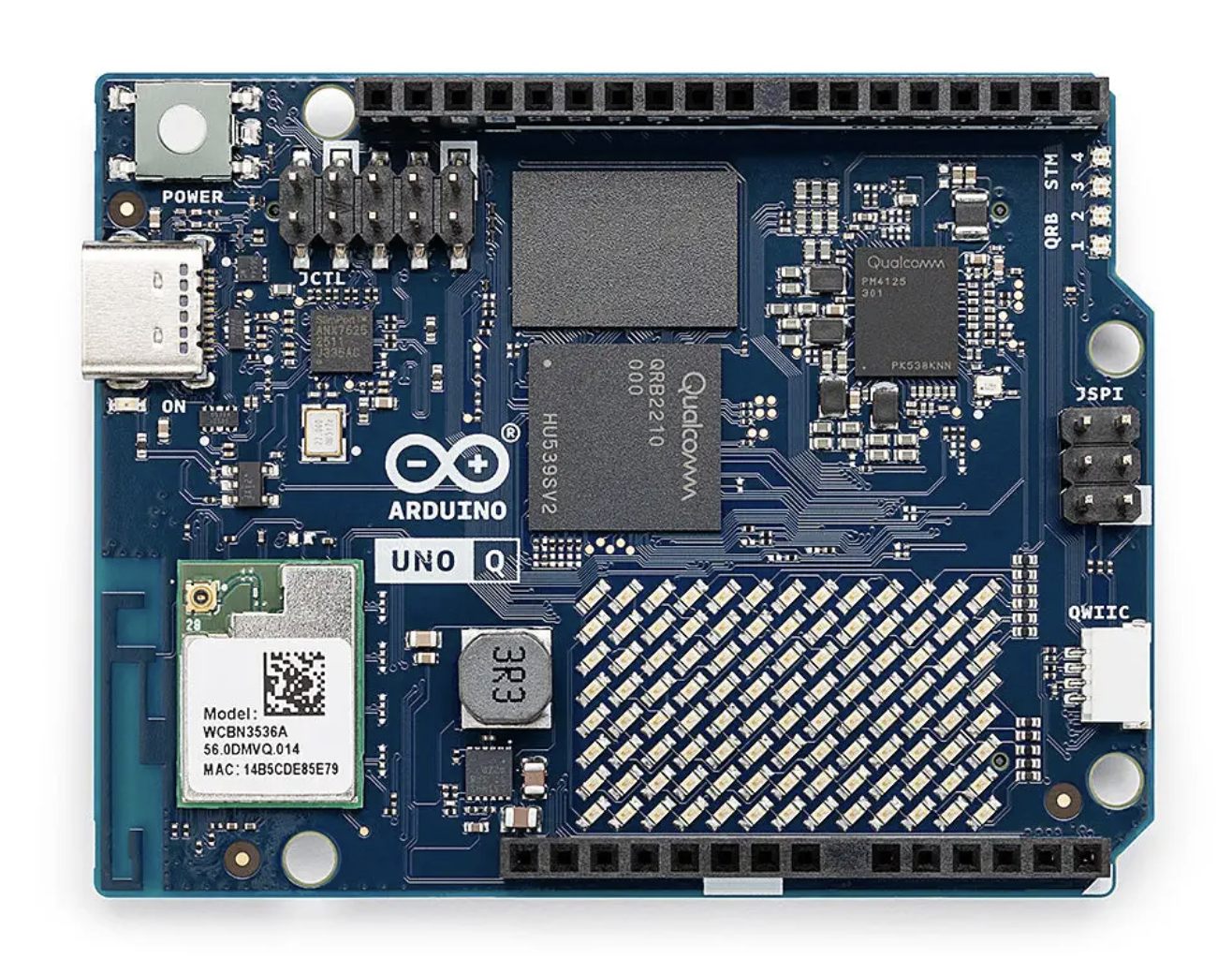

Arduino UNO Q

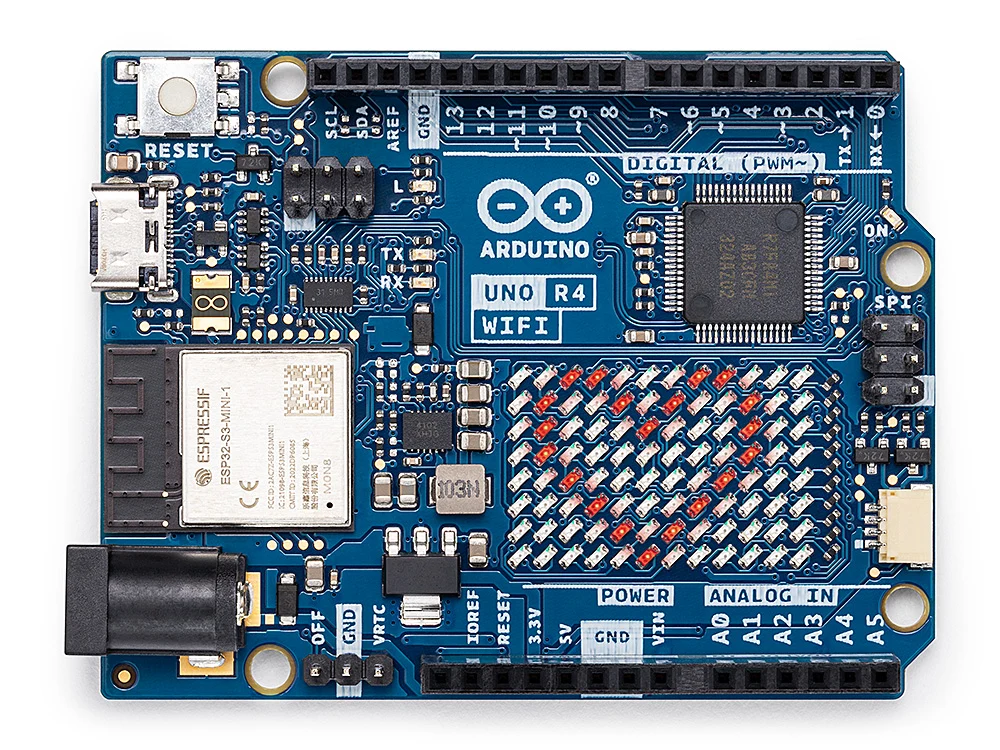

Arduino UNO R4 WiFi

This repository contains a working v0.1 compiler, not a JVM interpreter. The first milestone supports 32-bit integer code, static methods, branches, loops, and GPIO/time intrinsics. It can compile juno-examples/src/main/java/io/github/jabrena/juno/api/Blink.java all the way to a sketch (.S assembly + Shim.cpp runtime + .ino wrapper).

Java source -> javac -> .class -> Juno linker/AOT -> .S + Shim.cpp + .ino -> Arduino toolchain -> RA4M1 (UNO R4 WiFi)
                                                                                                 -> STM32U585 (UNO Q)

Modules

This is a multi-module Maven build:

juno-api/ — the programming model: the small Java-facing hardware API Juno recognizes as compiler intrinsics (io.github.jabrena.juno.api: Delay, Clock, Random, LedMatrix, api.io.Gpio, api.io.DigitalOutput, api.lcd.LcdKeypadShield, api.tft.TftTouchShield, api.hid.Mouse, api.io.serial.Serial, …) and the io.github.jabrena.juno.annotations package (Board, ArduinoBoard, ArduinoUnoR4WiFi, ArduinoUnoQ) that entry-point classes use to select a compilation target. This is the only artifact programs compile against.
juno-compiler/ — the Juno compiler itself (classfile, bytecode, linker, backend, …), which depends on juno-api. Builds juno-compiler/target/juno-compiler-<version>.jar, an executable jar whose main class is io.github.jabrena.juno.Main.
juno-maven-plugin/ — Maven goals for generating a sketch (juno:compile), compiling it with Arduino CLI (juno:verify), uploading it (juno:upload), and opening the serial monitor (juno:monitor). Every sketch is generated by the Cortex-M4 ASM backend, Juno's sole code-generation backend.
juno-examples/ — example Java programs written against juno-api's api and annotations packages, compiled by Maven like any other Java module (juno-examples/target/classes) so they are checked for compile errors on every build.

Quick start

Requirements: JDK 27+ and Maven 3.9+.

./mvnw clean install

This builds the modules: juno-api/target/juno-api-0.1.0-SNAPSHOT.jar (the hardware API), juno-compiler/target/juno-compiler-0.1.0-SNAPSHOT.jar (the compiler), juno-maven-plugin/target/juno-maven-plugin-0.1.0-SNAPSHOT.jar (the Maven integration), and juno-examples/target/classes (the compiled example programs). To turn an example into a .ino sketch and run it on real UNO R4 WiFi or UNO Q hardware with arduino-cli, see docs/ARDUINO.md. The UNO Q also needs Arduino's Zephyr core: arduino-cli core install arduino:zephyr.

Use the following commands for the complete Blink workflow. Blink targets both boards, so pick one with -Djuno.board:

# Generate and verify with arduino-cli
./mvnw -f juno-examples/pom.xml compile juno:verify \
  -Djuno.main=io.github.jabrena.juno.api.Blink \
  -Djuno.board=arduino-uno-r4-wifi   # or arduino-uno-q

# Upload
./mvnw -f juno-examples/pom.xml compile juno:upload \
  -Djuno.main=io.github.jabrena.juno.api.Blink \
  -Djuno.board=arduino-uno-r4-wifi   # or arduino-uno-q

# Monitor
./mvnw -f juno-examples/pom.xml juno:monitor

Upload and monitor auto-detect the port when exactly one matching board is connected. Otherwise, select it with -Djuno.port=<PORT>. Select another example with -Djuno.main=<fully-qualified-class-name>.

Java API

Hardware operations are normal Java native declarations at compile time and compiler intrinsics at link time:

import io.github.jabrena.juno.annotations.ArduinoUnoR4WiFi;
import io.github.jabrena.juno.annotations.Board;
import io.github.jabrena.juno.api.Delay;
import io.github.jabrena.juno.api.io.DigitalOutput;

@Board(ArduinoUnoR4WiFi.class)
public final class Blink {
    public static void main(String[] args) {
        DigitalOutput led = DigitalOutput.of(13);
        while (true) {
            led.high();
            Delay.millis(500);
            led.low();
            Delay.millis(500);
        }
    }
}

See the Javadoc for the complete Java API reference.

For Wi-Fi connections, HTTP/HTTPS REST calls, and bounded JSON response extraction, see the Internet access guide. Credentials can be resolved at compile time or loaded from an SD card as described in the SD-card configuration guide. For sending and reading email (Smtp/Pop3Client), see docs/EMAIL.md. For how these API classes work internally, and the checklist for adding a new one, see docs/APIS.md.

Target board

@Board (io.github.jabrena.juno.annotations.Board) on the entry-point class selects the board Juno compiles for, and juno:verify/juno:upload build for its Arduino CLI FQBN:

Annotation	Board	FQBN
`@Board(ArduinoUnoR4WiFi.class)`	Arduino UNO R4 WiFi	`arduino:renesas_uno:unor4wifi`
`@Board(ArduinoUnoQ.class)`	Arduino UNO Q (its STM32U585 microcontroller)	`arduino:zephyr:unoq`

A class with no @Board annotation is not restricted to one board: it builds for the board named by -Djuno.board=<id>, or the UNO R4 WiFi when the option is omitted. GPIO, time, Serial, Wifi/Udp, and the shields built on them (LCD keypad, TFT touch) compile and upload for both boards. The LED matrix, Wi-Fi with HTTP/HTTPS/email, and @Watchdog are UNO R4 WiFi only (on the UNO Q, the LED matrix belongs to the board's Linux side, and its Zephyr core has no HTTP/HTTPS/email libraries Juno can lower to — plain Wifi/Udp still work through the MCU's own Zephyr networking), and Juno rejects the R4-only APIs at compile time for the UNO Q. The other APIs built on UNO R4 libraries (USB mouse, SD card, servo) have not been tried on the UNO Q yet. The TFT games Star Trek, Star Wars, The Empire Strikes Back, Red Baron and Space Paranoids target the UNO Q:

@Board(ArduinoUnoQ.class)
public final class RedBaron {

Supported Java subset

Juno deliberately fails at link time when reachable code uses something outside the current subset. Diagnostics identify the method, bytecode offset, and unsupported operation/bootstrap. See docs/FEATURES.md for the full, up-to-date inventory of what's supported and what isn't.

Every compile (standalone CLI or juno-maven-plugin's compile/verify/upload goals) prints conservative runtime-risk and resource estimates automatically:

java -jar juno-compiler/target/juno-compiler-0.1.0-SNAPSHOT.jar compile \
  --main ArenaFeaturesPulse \
  --classpath juno-examples/target/classes:juno-api/target/classes

The report includes the fixed-arena budget, estimated static RAM and generated local storage, maximum call depth, emitted array bounds checks, and stable JUNO-RISK-* findings for allocation inside loops, recursion, possible integer division by zero, unchecked array access, and compile-time-null dereferences. These are conservative source-level checks; the Arduino linker's memory report remains authoritative for final RAM and flash use.

Architecture

classfile parses standard JVM class files and resolves constant-pool references.
bytecode decodes and validates the v0.1 instruction set.
linker starts at main, follows reachable static calls, resolves hardware intrinsics, and eliminates unreachable methods.
backend emits GNU ARM (Cortex-M4, Thumb-2) assembly directly from Juno's IR, plus a small extern "C" C++ runtime shim (GPIO/Serial/LED matrix/Wi-Fi/HTTP/JSON helpers, the arena allocator, long/float/double support) that the generated assembly calls into.

The above live under juno-compiler/src/main/java/io/github/jabrena/juno/; the small Java-facing hardware abstraction (api/) and the @Board selection types (annotations/) live under juno-api/src/main/java/io/github/jabrena/juno/.

Development

./mvnw test

Runs the full reactor's tests, including the juno-compiler module's unit tests and offline toolchain verification for the generated ASM backend artifacts. The tests compile Java fixtures, check reachability and failure diagnostics, assemble generated .S files with a bundled arm-none-eabi-gcc when one can be found locally, and pass the generated runtime shim through clang++ or g++ with a minimal Arduino compatibility header when one is available.

./mvnw javadoc:aggregate

Generates a Javadoc site for juno-api and juno-compiler into docs/javadocs/<version>/apidocs, e.g. docs/javadocs/0.1.0-SNAPSHOT/apidocs/index.html (juno-examples is excluded, since it's example programs rather than library API).

Cyclomatic complexity

The cyclomatic-complexity profile runs PMD's CyclomaticComplexity rule on every module with the thresholds in pmd/pmd-cyclomatic-complexity.xml (methods above 25, classes above 70):

# Check: fails the build on any method or class over the thresholds
./mvnw clean verify -Pcyclomatic-complexity

# Report: the aggregate PMD report for all modules, cross-linked to the source
./mvnw -Pcyclomatic-complexity -DskipTests site

The report is written to target/site/pmd.html (and per module to <module>/target/site/pmd.html). Serve it with the JDK's built-in web server, jwebserver (JDK 18+; it needs an absolute path), then open http://127.0.0.1:8000/pmd.html:

jwebserver -d "$(pwd)/target/site" -p 8000

Stop the server with Ctrl+C.
